Product features

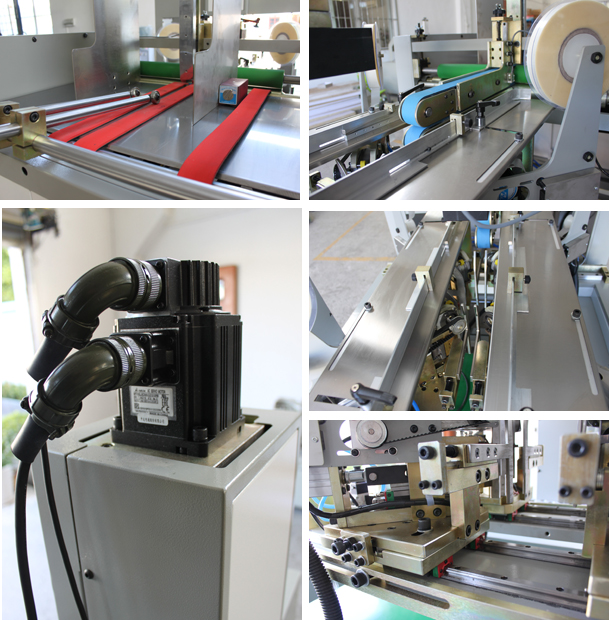

YX-400 automatic pasting machine is for tapping the four corners of the inner box with transparent tape or craft paper tape, can collocate with conveying belt and automatic positioning machine to set up automatic pasting and positioning production line.
1.Servo motor drive, PLC programmable control.
2.Man-machine control system, simple and easy adjusting.
3.All control elements use well known brand, low fault rate, high accuracy.
4.Automatic fault detect and alarm.
5.With emergency stop button.
6.Ingenious shape, small floor space, high production efficiency.
Product application
Widely used in gift boxes, moon cake boxes, mobile phone box, shoes box, watches, jewelry box, cosmetic box, tea box, wine box, medicine box.
Jewelry box
Shoe box
Gift box
Mobile box
Product parameters
| Model | YX-400 |
Cardboard thickness | 1-4mm |
Max. box size | 400*400*120mm |
Min. box size | 50*40*10mm |
Production speed | 50-70pcs/min |
Total power | 3KW |
| Power supply | AC220V/50-60Hz |
Machine weight | 750kg |
Machine dimension | 1500*1100*1700mm |
