Product features

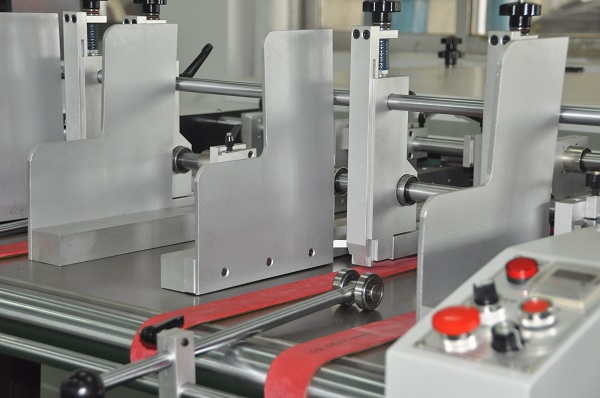

ZS-1200A automatic grooving machine use belt to feed cardboard, then belts on the rotary drum fasten the cardboard and send it to the grooving part to make V groove.
1.Energy saving: the total power is 1.5KW only, greatly reduce production cost;
2.Environment friendly: no noise and dust during production, the scraps can be recycled.
3.High efficiency: automatic cardboard feeding, greatly increase production efficiency.
4.Good finish: V groove is smooth and without burr.
Product application
Widely used in gift box, moon cake box, mobile phone box, shoes box, watches box, jewelry box, cosmetic box, tea box, wine box, medicine box, etc.
Wine box
Gift box
Mobile box
Cosmetic box
Product parameters
| Model | ZS-1200A |
Max. numbers of groove | 8 |
Cardboard size | 140*120-900*600mm |
Cardboard thickness | 1-5mm |
Production speed | 40m/min |
Power supply | 220V/50Hz |
Total power | 1.5KW |
Machine weight | 1250kg |
Machine dimension | 2050*1350*1450mm |
