Product features

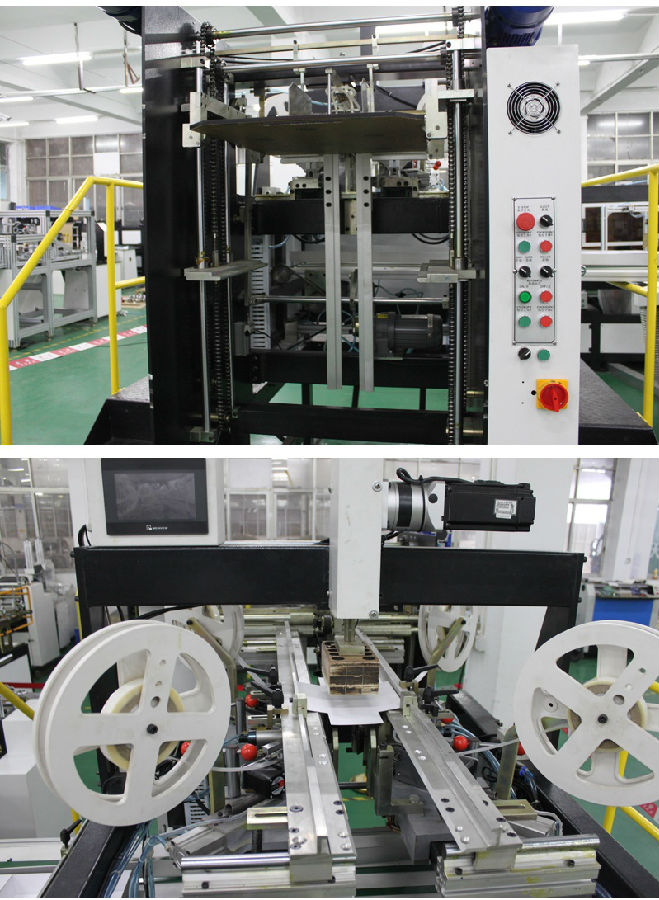

ZS-6418D automatic pasting machine is part of the automatic rigid box making machine, it’s suitable for taping the four corners of the inner box with transparent tape or craft paper tape.
1.Automatic cardboard feeding & tapping.
2.Double stacking table design, continuous cardboard loading.
3.Automatic fault detect and alarm.
4.Professional design, convenient and quick mold changing and adjusting.
Product application
Widely used in gift boxes, moon cake boxes, mobile phone box, shoes box, watches, jewelry box, cosmetic box, tea box, wine box, medicine box, etc.
Shoe box
Wine box
Gift box
Mobile box
Cosmetic box
Product parameters
| Model | ZS-6418D | |
Cardboard size | C max | 580mm |
| D max | 920mm | |
| T2 | 1-4mm | |
Finished box size(W*L*H) | L min | 100mm |
| L max | 600mm | |
| W min | 60mm | |
| W max | 400mm | |
| H min | 12mm | |
| H max | 120mm | |
Production speed | 25-45pcs/min | |
Power supply | 380V/50Hz 3phases | |
Total power | 2.5kw | |
Machine weight | 550kg | |
Machine dimension | L2700×W2500×H2500mm | |
