Product features

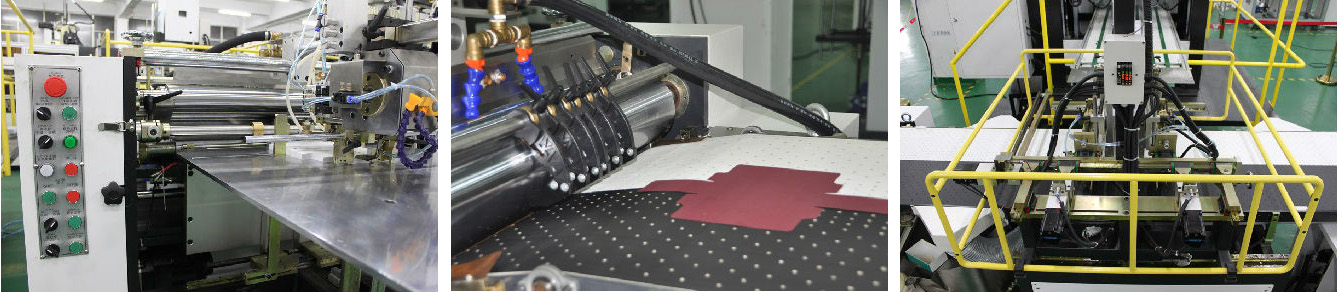

ZS-6418C automatic feeding, gluing & positioning machine is composed of automatic feeding & gluing machine and automatic positioning machine, can collocate with automatic(semi-automatic) taping machine, automatic(semi-automatic) forming machine, etc.
1.High automation, greatly save labor and increase efficiency.
2.Adopts YASKAWA motion controller and touch screen type man-machine control system, simple operation, easy to learn.
3.Rational structure, low fault rate, with automatic fault alarm and trouble shooting.
4.Humanized design, convenient and quick mold changing and adjusting.
5.With memory function, can save and recall settings.
6.24 hours timing control glue heating function.
7.Servo optical fiber positioning system, high positioning accuracy ( ±0.2mm ).
8.Servo control spindle push box down onto surface paper, stable and accurate.
Product application
Widely used in gift boxes, moon cake boxes, mobile phone box, shoes box, watches, jewelry box, cosmetic box, tea box, wine box, medicine box, etc.
Book type box
Shoe box
Gift box
Mobile box
Tea box
Product parameters
Model | ZS-6418C | |
Paper size | A min | 95mm |
A max | 610mm | |
B min | 180mm | |
B max | 920mm | |
T | 80-300g/m2 | |
Finished box size(W*L*H) | L min | 100mm |
L max | 600mm | |
W min | 80mm | |
W max | 400mm | |
H min | 12mm | |
H max | 150mm | |
Positioning accuracy | ± 0.2mm | |
Production speed | ≤30pcs/min | |
Air pressure | 0.4-0.6Mpa | |
Power supply | 380V/50Hz 3phases | |
Total power | 9.1kw | |
Machine weight | 1500kg | |
Machine dimension | L6600×W1280×H2100mm | |
