Product features

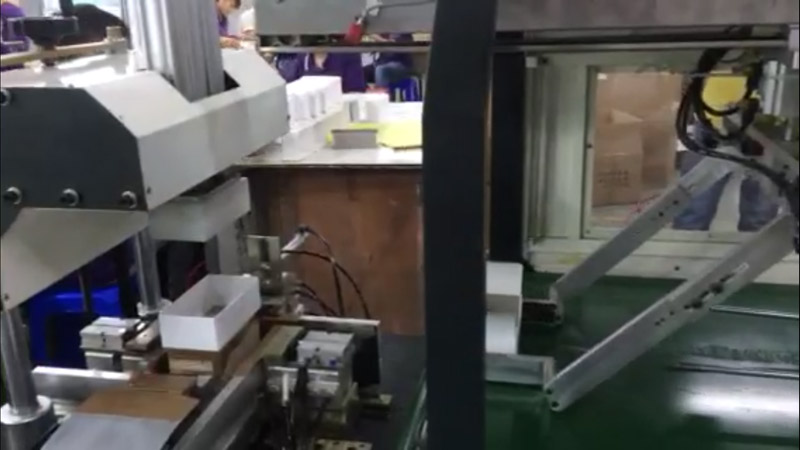

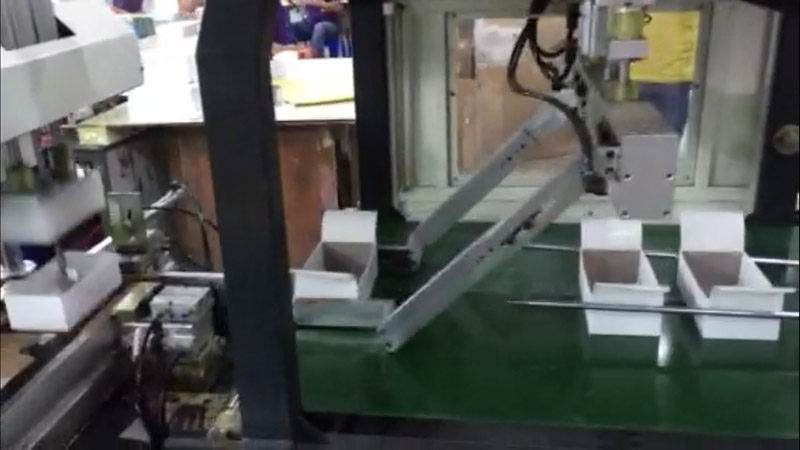

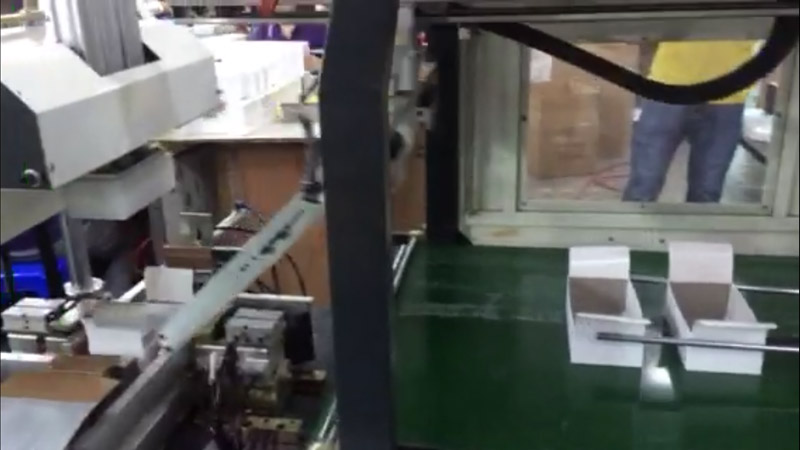

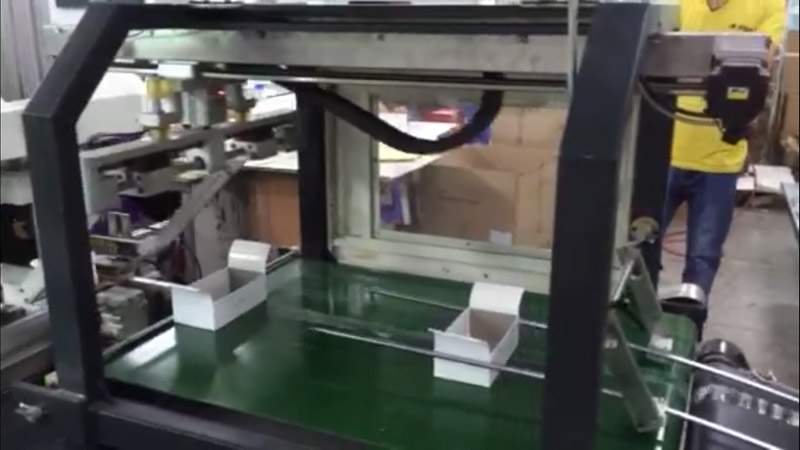

YX-780A automatic tuck-in machine uses robotic arm to automatic feedbox to the wrapping&pressing integrated machine, can use both for wrapping and pressing or bubble pressing only, it's a very useful machine for box making.
1.Adopts PLC man-machine touch sreen system, easy to operate.
2.Adopts Robotic arm feeding system, no need to put box by hand, save labour cost.
3.Can use for box wrapping & pressing or bubble pressing only, suitable for various production requirement.
4.Simple mold changing and adjusting, high accuracy.
Product application
Widely used in gift box, moon cake box, mobile box, shoes box, watch box, jewelry box, cosmetic box, tea box, wine box, medicine box, etc.
Jewelry box
Shoe box
Gift box
Gift box
Mobile box
Product parameters
| Model | YX-780A |
Max. box size | 400*300*120mm |
Min. box size | 50*50*10mm |
Production speed | 15-25pcs/min |
Power supply | 220V/50Hz |
Total power | 0.5KW |
Machine weight | 600kg |
Machine dimension | 1400*1050*1850mm |
