Product features

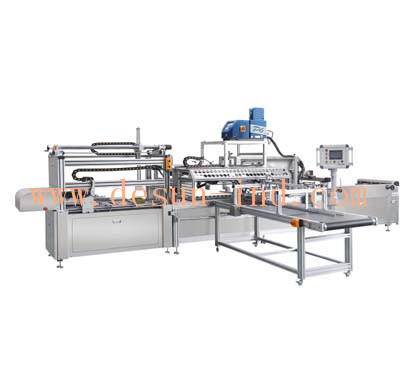

ZS-1200Z fully automatic assembly & forming machine is mainly glue spray, assembly and forming of various book type boxes, such as mobile boxes, cosmetic boxes, health product boxes, moon cake boxes, tea boxes, etc.
1.All position automatic adjust by man-machine system.
2.Suck or push left & right to release board, suitable for both grey board and MDF.
3.Adopts computer control glue spray, can spray line, point, fog.
4.Adopts hold box feeding system, suitable for normal boxes, bottomless boxes, shaped boxes, etc.
5.Hardcover automatic folding, save labor and make cover stick more firmly.
Product application
Widely used in tea box, gift box, moon cake box, mobile phone box, shoes box, watches, jewelry box, cosmetic box, wine box, medicine box, etc.
Book type box
Book type box
Book type box
Book type box
Book type box
Product parameters
Model | ZS-1200Z |
Sprayer qty. | 1 |
Production speed | 20-25pcs/min |
Max. size | 1200*500mm |
Min. size | 180*70mm |
Positioning accuracy | ±0.4mm |
Air pressure | 0.6-0.8Mpa |
Power supply | 380V/50Hz |
Total power | 6kw |
Machine weight | 1500kg |
Machine dimension | L6000*W3200*H2000mm |
